Heavy Duty Flatbeds

Standard Features

  • 100% Steel Frame Construction
  • Frame Rails - 6" or 8" Structural Channel
  • Crossmembers - 3" Structural Channel (24" on Center)
  • Side Rails - 6" Structural Channel
  • Epoxy Primer & 2-Component Polyurethane Paint
  • Pressure Treated 2"x8" Decking

Options

  • Front and Rear Bulkheads (Bolt On) / Custom Front and Rear Racks Available
  • HD Stake Pocket Rub-Rail
  • 4# Steel Grate Decking
  • Oak Decking

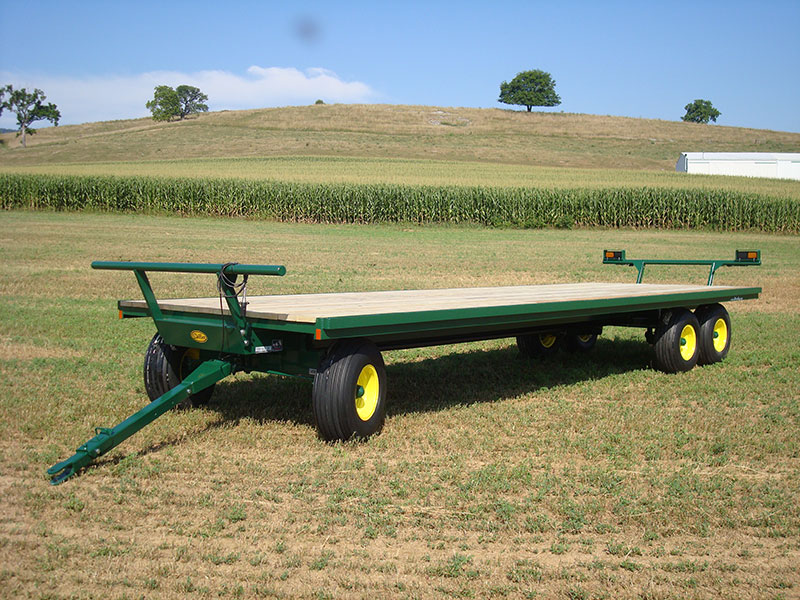

  • LED Ag Lights Kit w/7 Pin Plug (bulkhead mounted or recessed into rear bumper)
  • 4" Channel Crossmember Upgrade

Specifications

Model Width Length Capacity Frame Crossmembers Sides
FB-924HD 108" 24' 24,000# 8"C x 11.5# 13, C3" C6"
FB-926HD 108" 26' 26,000# 8"C x 11.5# 14, C3" C6"
FB-928HD 108" 28' 28,000# 8"C x 11.5# 15, C3" C6"
FB-930HD 108" 30' 30,000# 10"C x 15.3# 16, C3" C8"
FB-932HD 108" 32' 32,000# 10"C x 15.3# 17, C3" C8"
